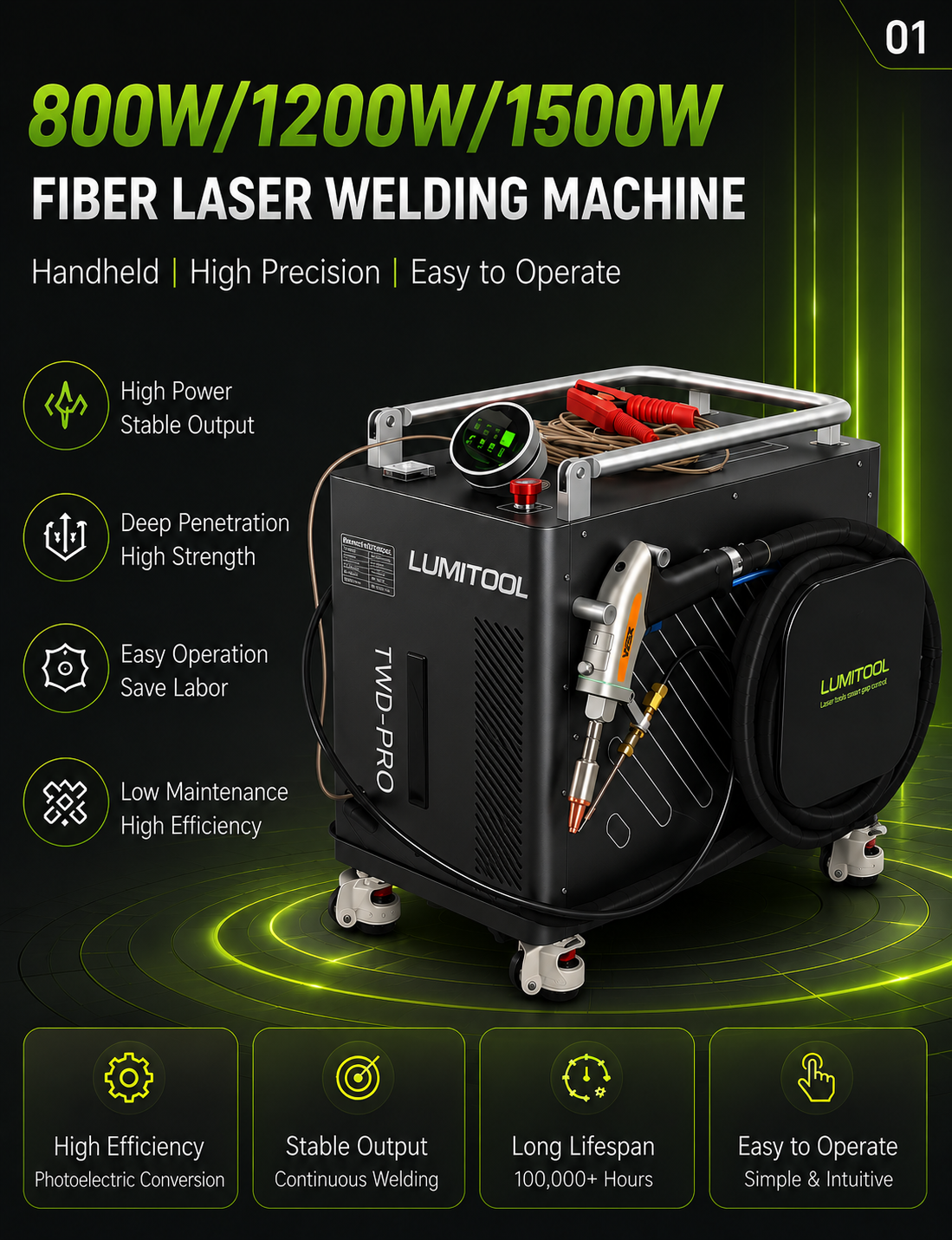

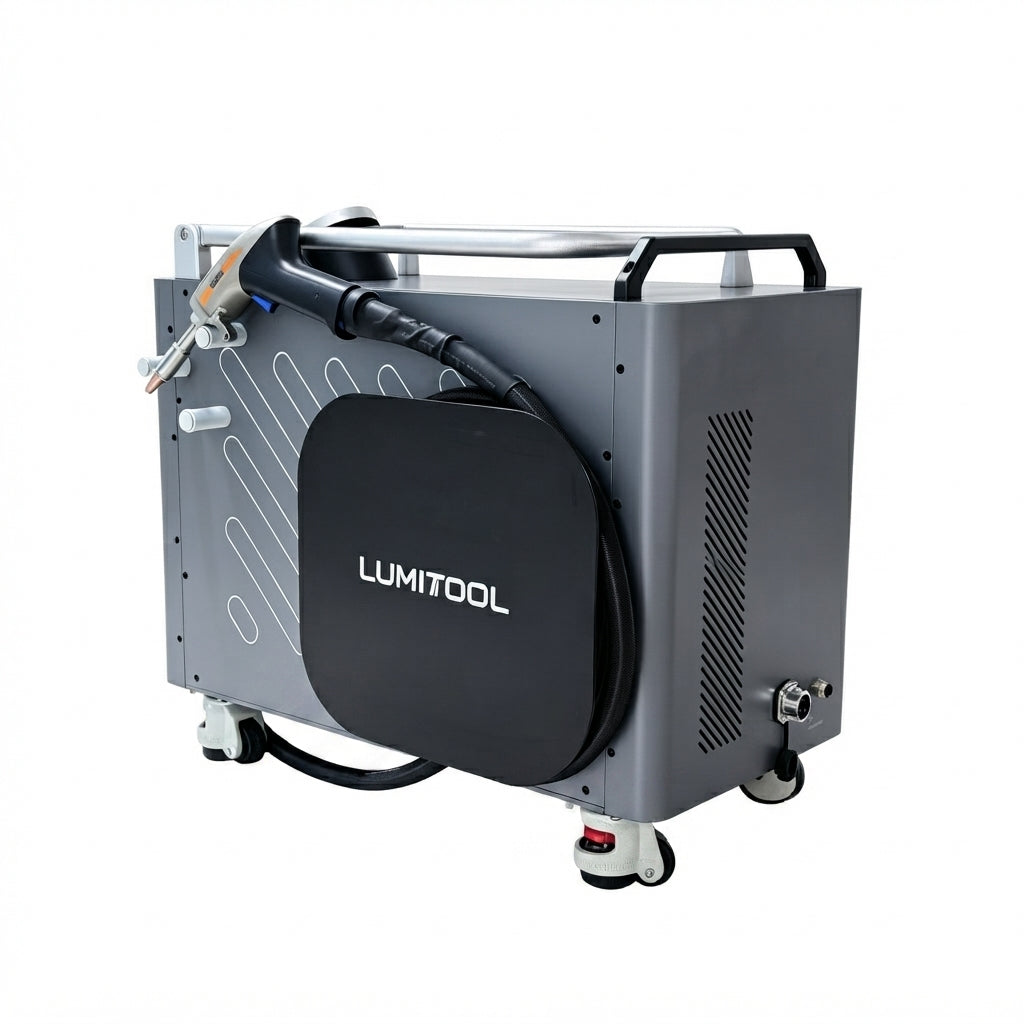

Lumitool 3 In 1 800W 1200W 1500W Fiber Laser Welding Machine
Machine Advantage
FWD-PRO Laser Handheld Welding Machine:

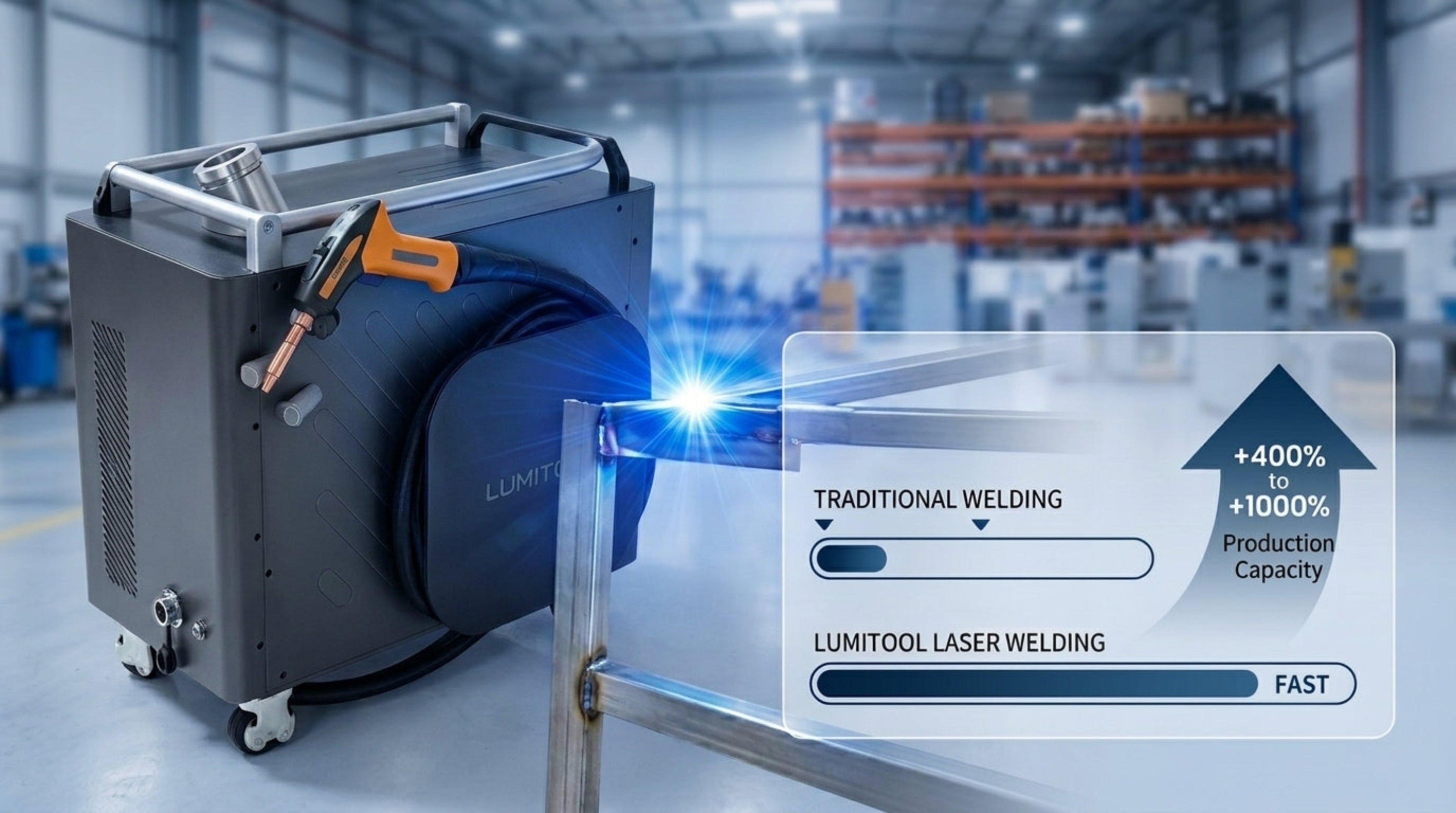

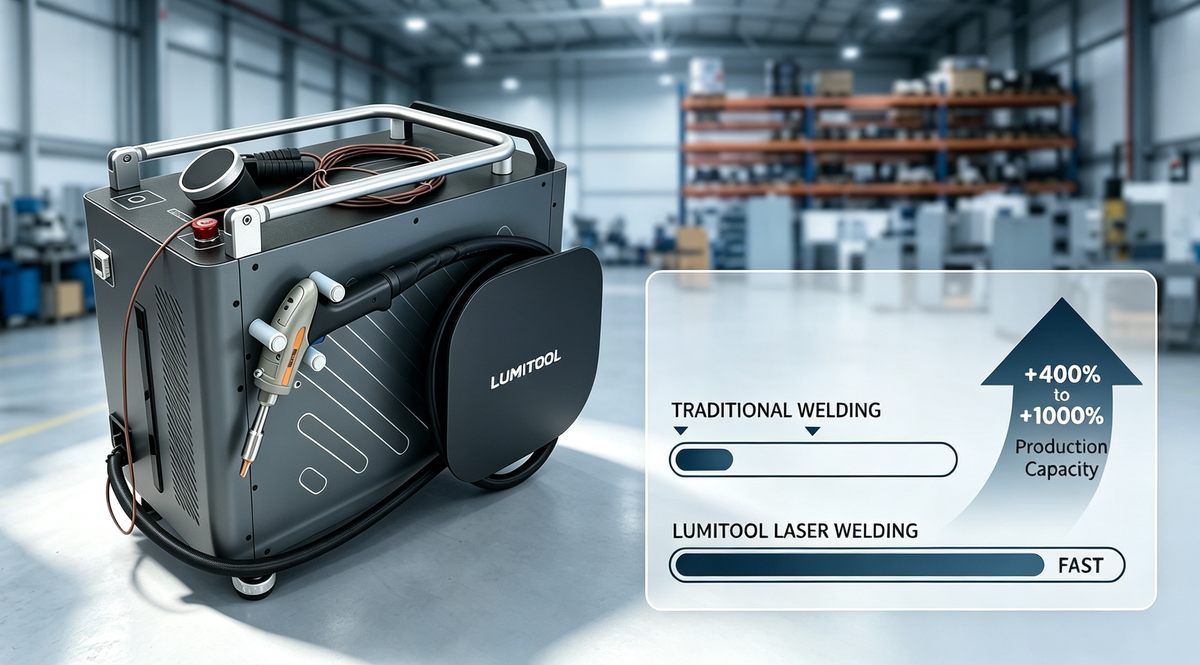

1.High Speed and Efficiency: Production speed is 4-10 times faster than traditional welding, significantly increasing production capacity.

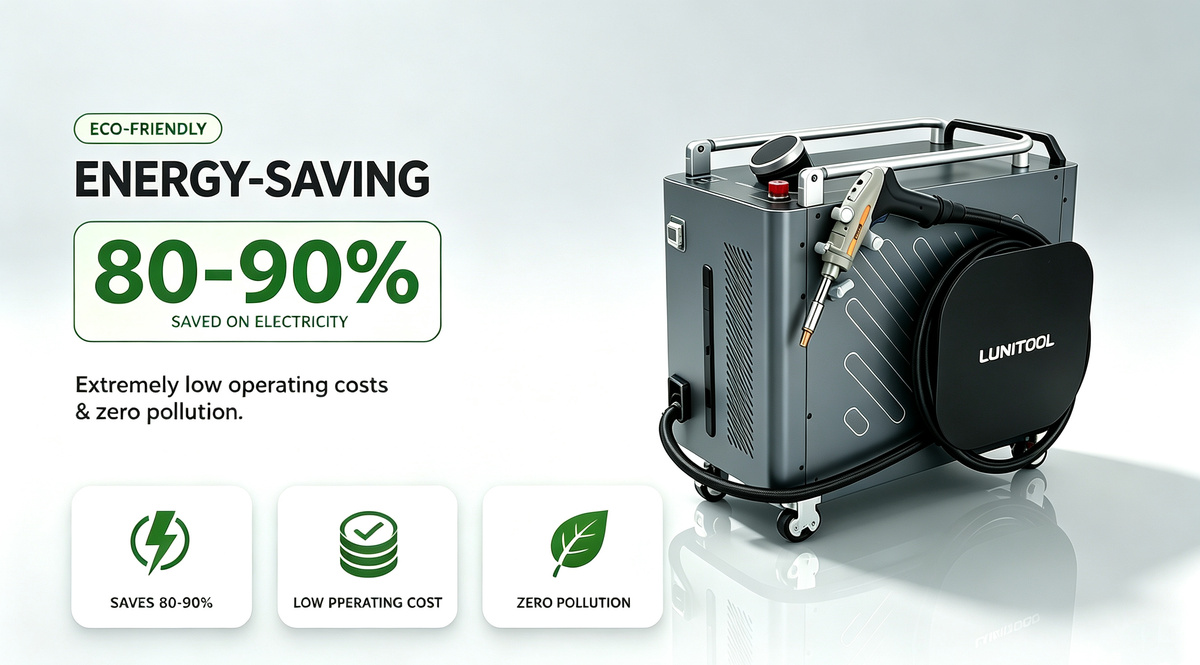

2.Energy-Saving and Environmentally Friendly:Saves 80%-90% on electricity compared to traditional welding, resulting in extremely low operating costs and zero pollution.

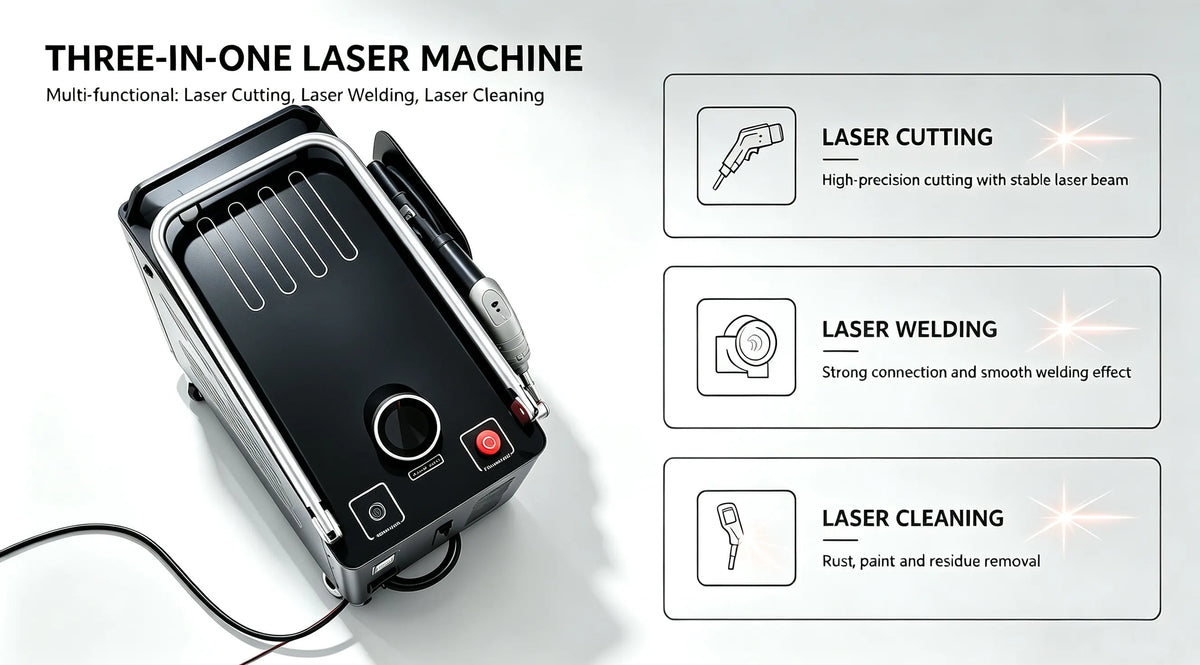

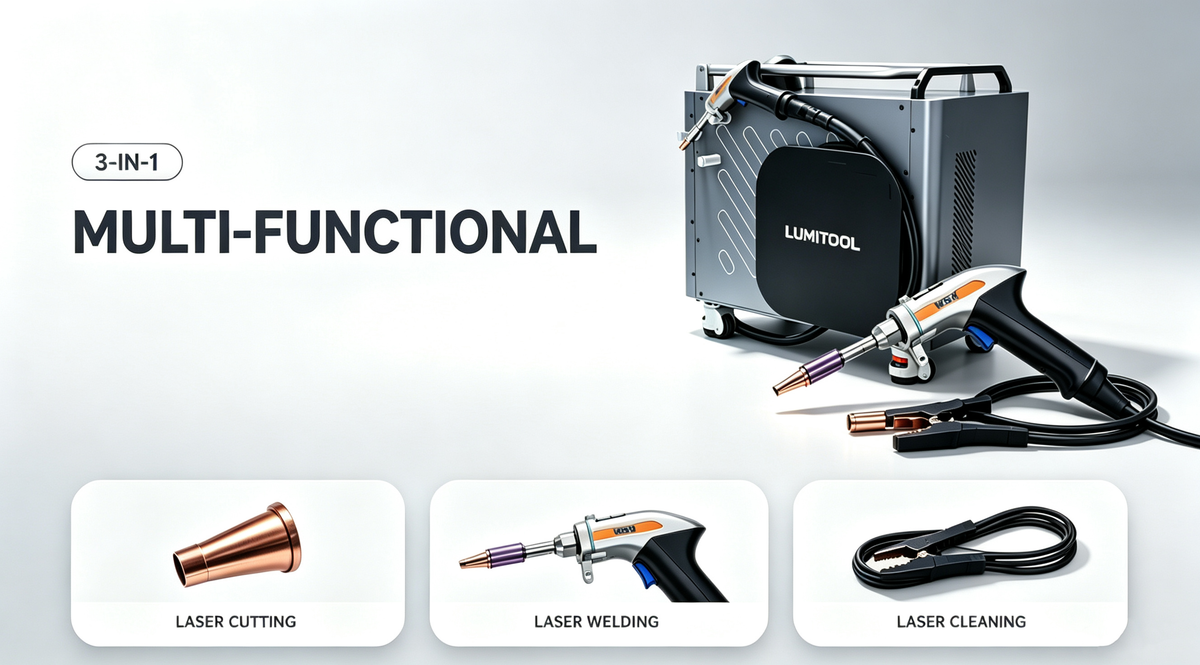

3.Multi-functional:

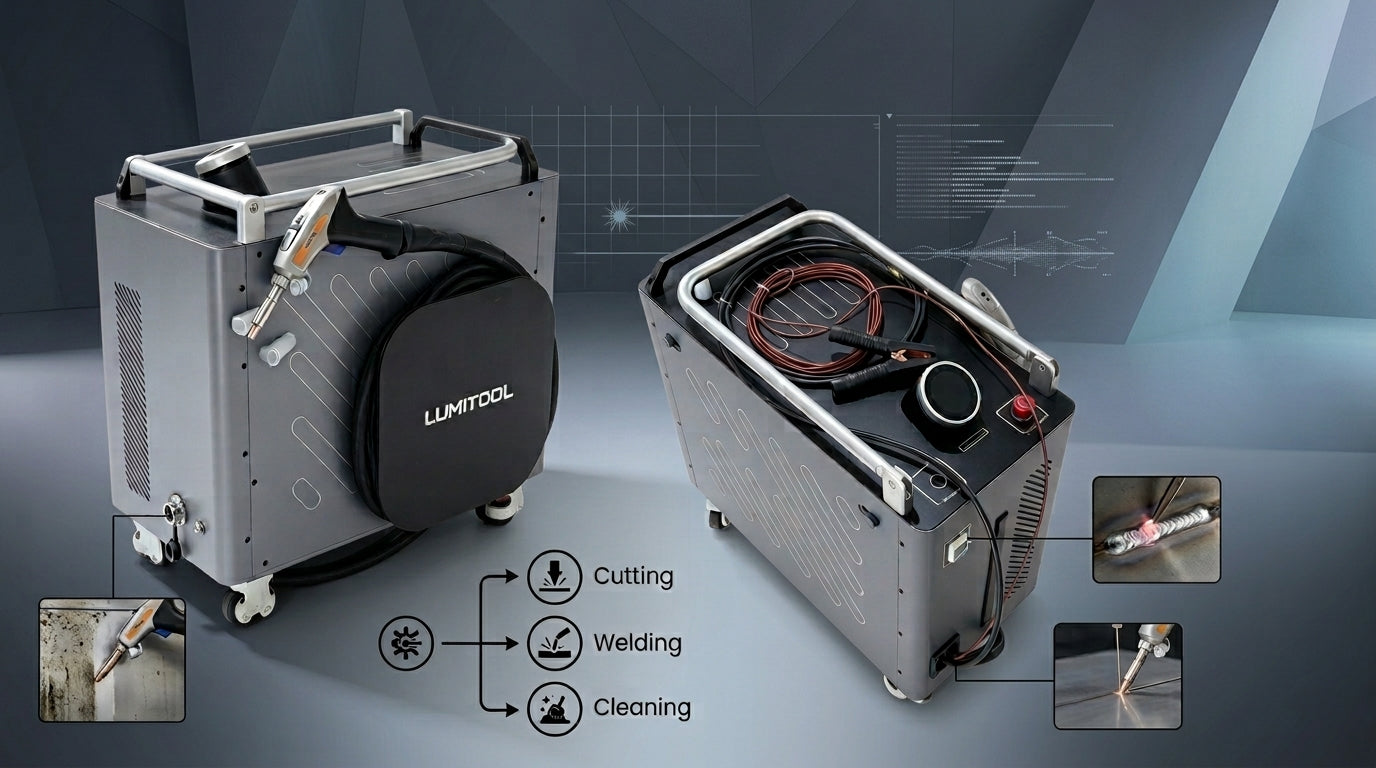

Three-in-one multi-functional machine, integrating laser cutting, laser welding, and laser cleaning for highly efficient operation.

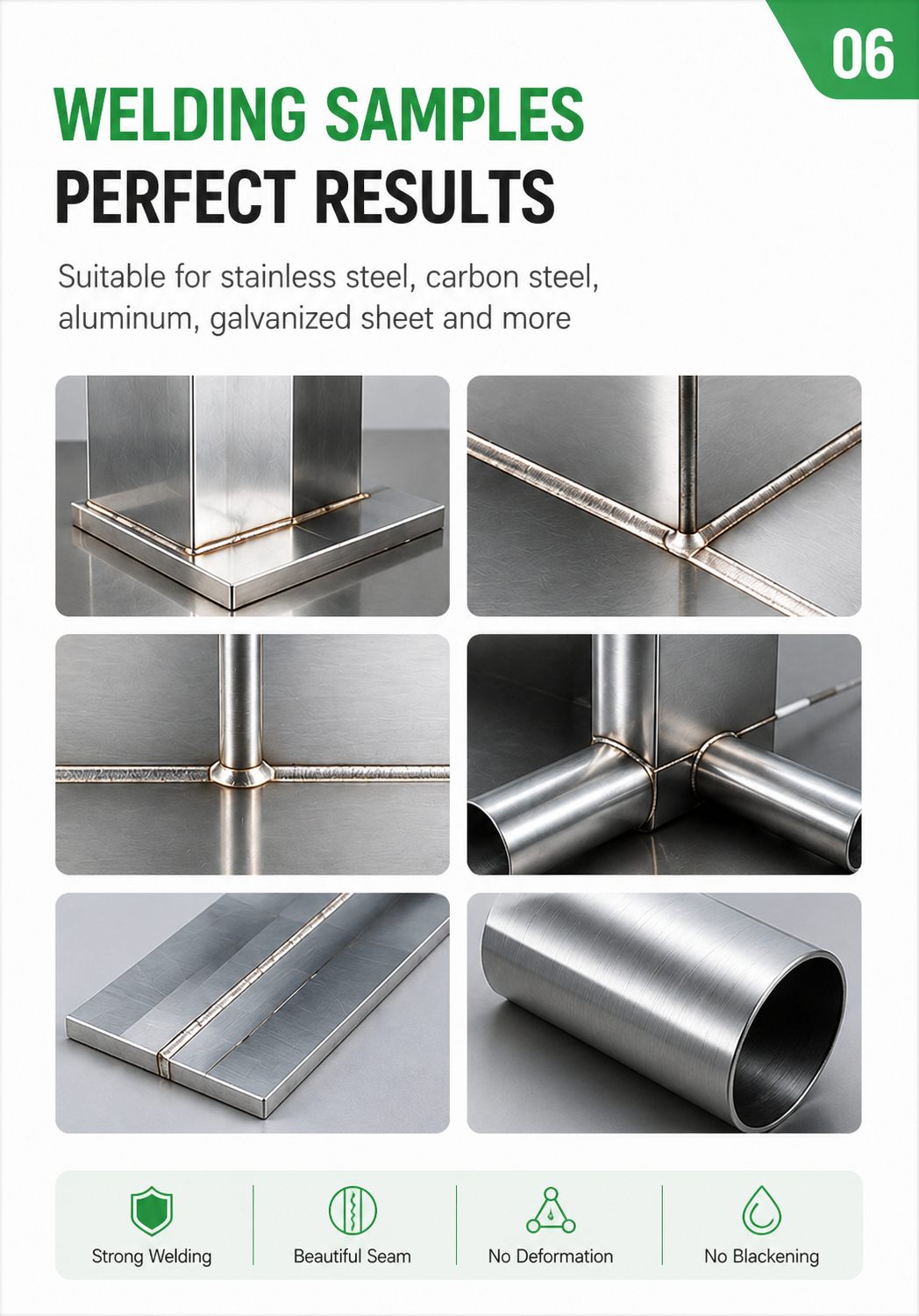

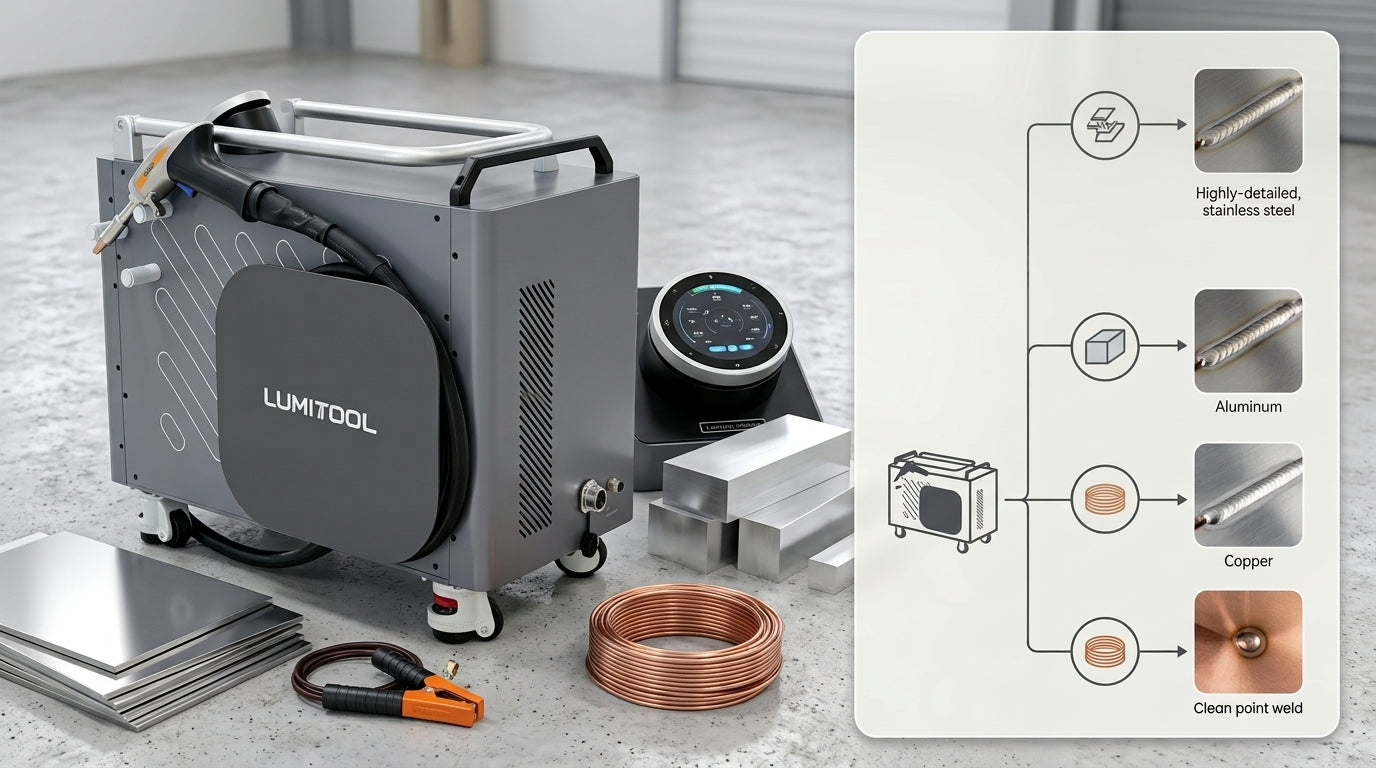

4.Versatile Welding:Laser welding of stainless steel, aluminum, copper, and various other metals, producing smooth, aesthetically pleasing, and high-strength welds.
5.Easy to Operate:

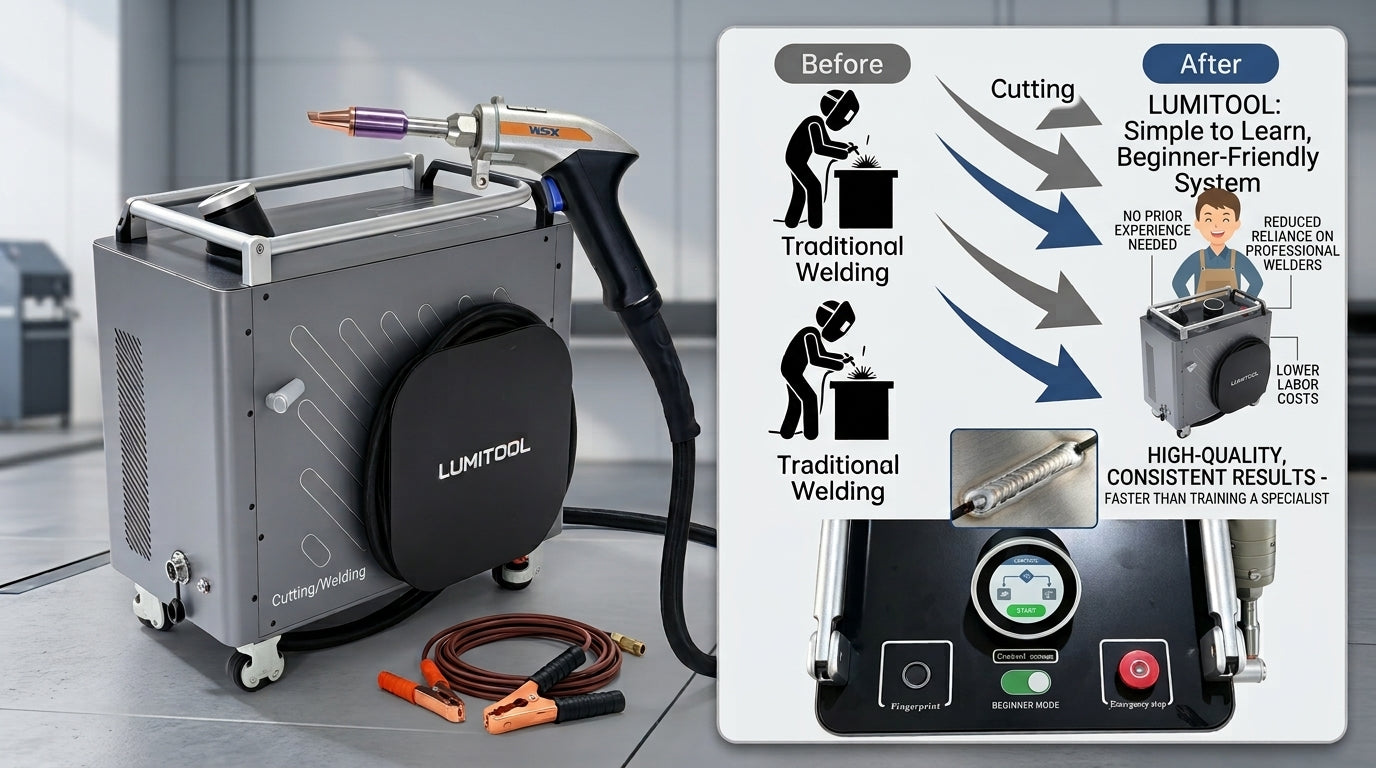

Intelligent system allows even beginners to quickly learn, reducing reliance on professional welders and labor costs.

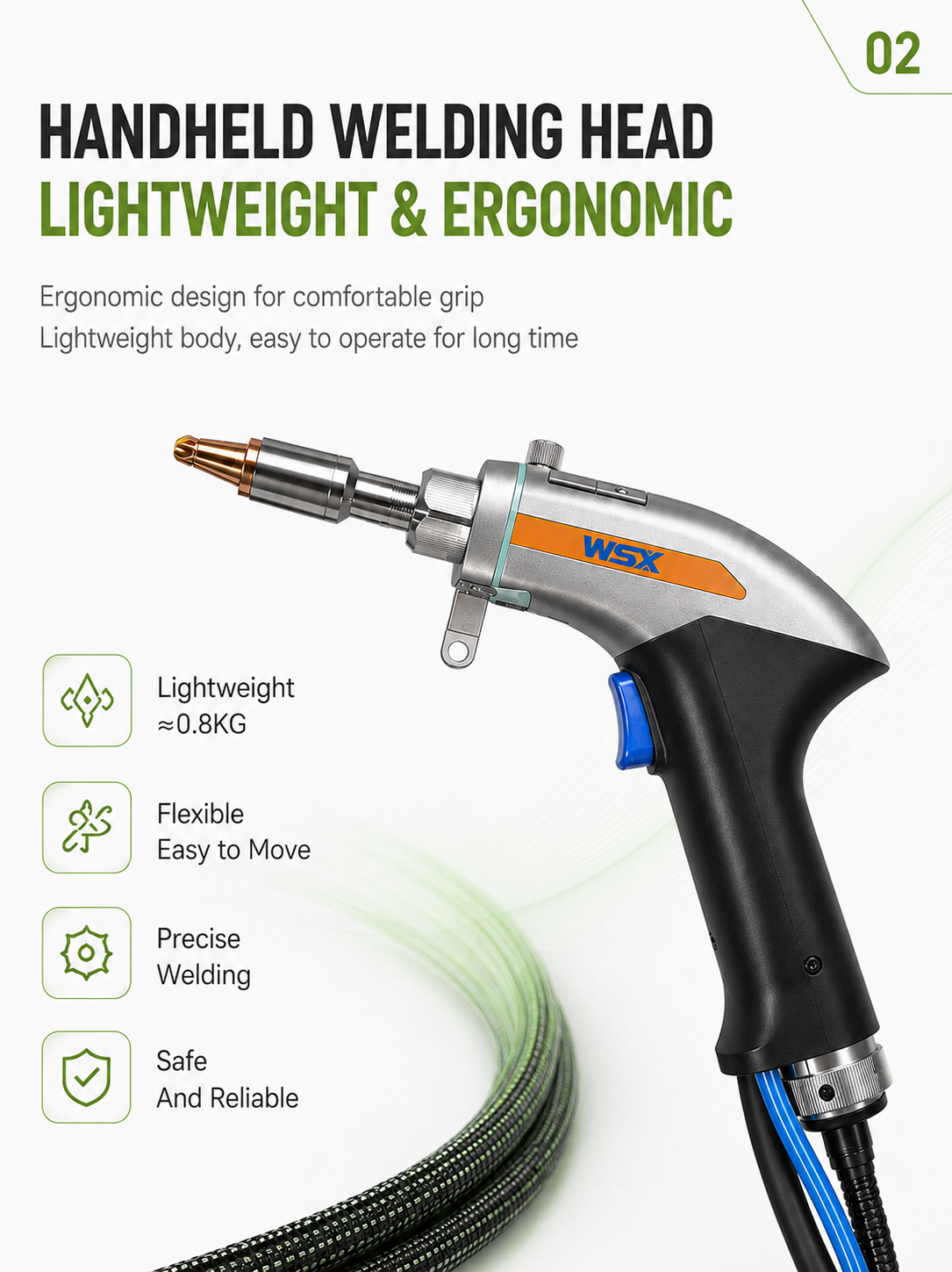

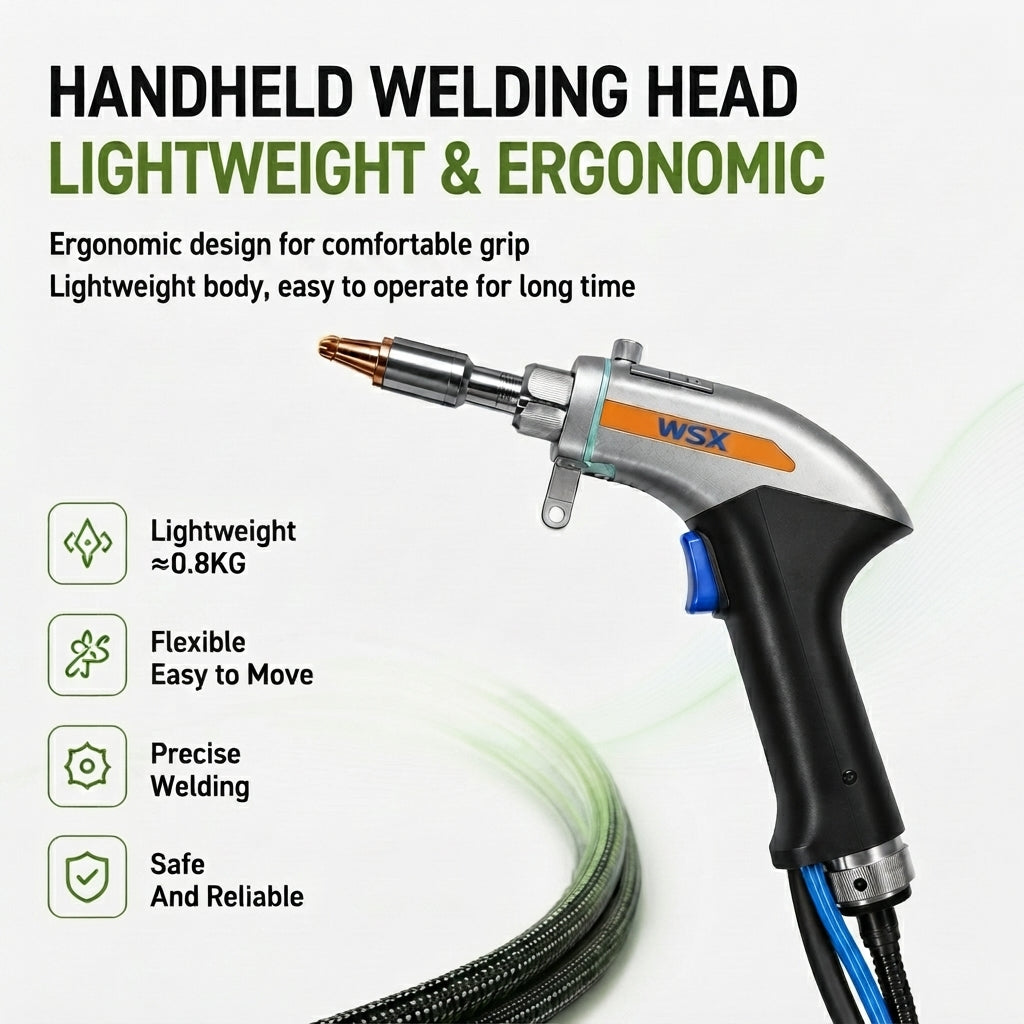

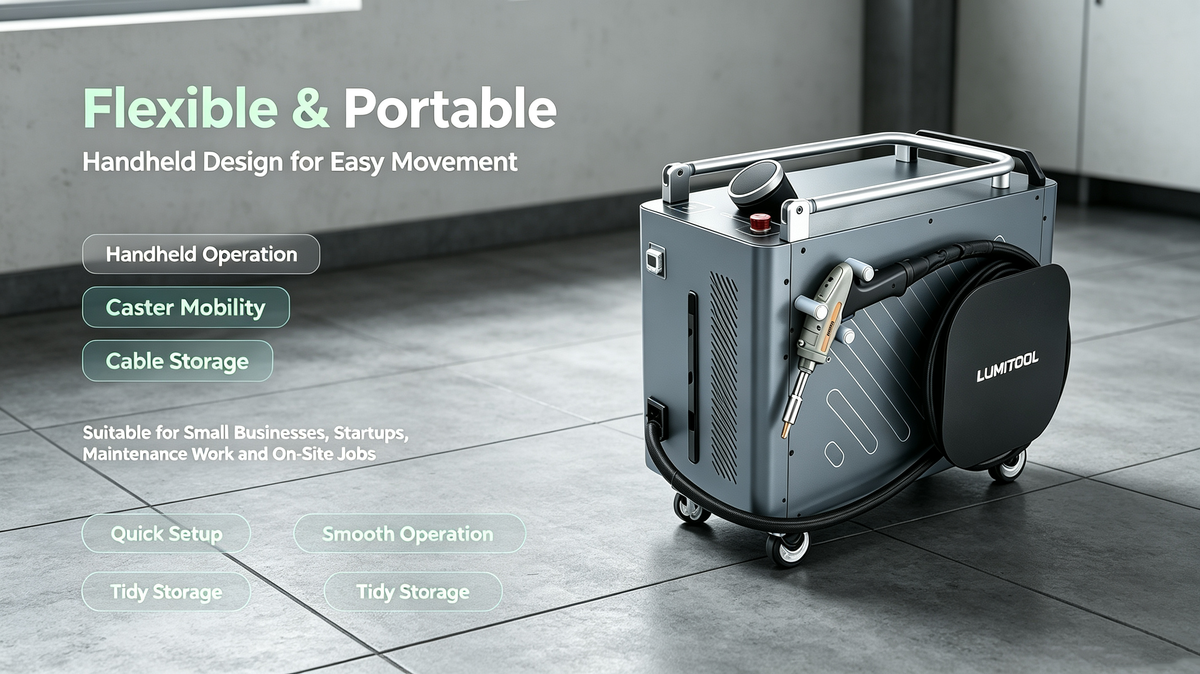

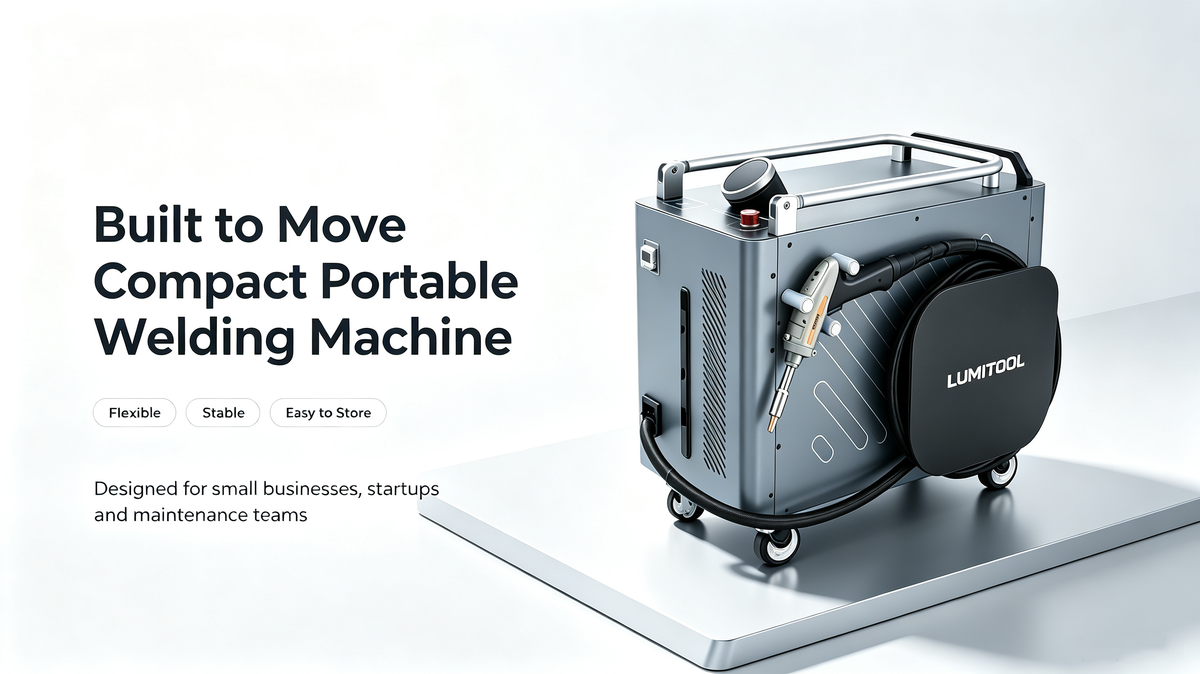

6.Flexible and Portable:

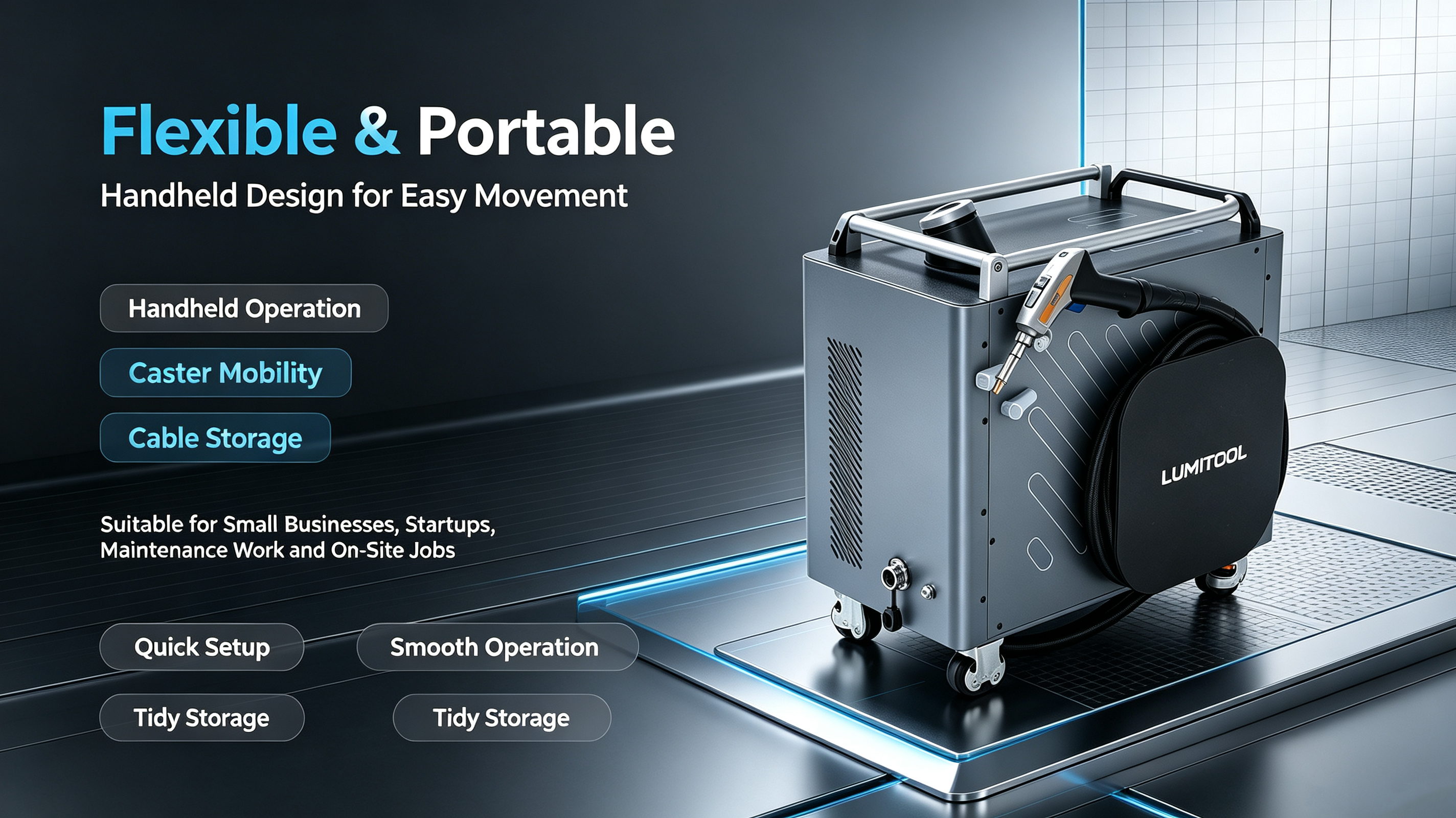

Handheld design for easy movement, suitable for various complex work scenarios, small businesses, and startups.
High Speed and Efficiency: Production speed is 4-10 times faster than traditional welding, significantly increasing production capacity.
Energy-Saving and Environmentally Friendly:Saves 80%-90% on electricity compared to traditional welding, resulting in extremely low operating costs and zero pollution.
Multi-functional:
Three-in-one multi-functional machine, integrating laser cutting, laser welding, and laser cleaning for highly efficient operation.
Versatile Welding:Laser welding of stainless steel, aluminum, copper, and various other metals, producing smooth, aesthetically pleasing, and high-strength welds.
Easy to Operate:
Intelligent system allows even beginners to quickly learn, reducing reliance on professional welders and labor costs.
Flexible and Portable:
Handheld design for easy movement, suitable for various complex work scenarios, small businesses, and startups.
Product Specifications
| Item | FWD 800W | FWD-PRO 1200W | FWD-PRO 1500W |
|---|---|---|---|
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm |
| Rated Power | 800 W | 1200 W | 1500 W |
| Peak Power | 1000 W | 1200 W | 1500 W |
| Cooling Method | Air-cooled | Air-cooled | Air-cooled |
| Welding Torch Interface | QBH | QBH | QBH |
| Swing Width | 0-8 mm | 0-8 mm | 0-8 mm |
| Swing Speed | 0-1200 Hz | 0-1200 Hz | 0-1200 Hz |
| Wire Feeding System | Built-in Wire Feeder | Built-in Wire Feeder | Built-in Wire Feeder |
| Control Mode | Fingerprint + APP + Intelligent Round Screen | Fingerprint + APP + Intelligent Round Screen | Fingerprint + APP + Intelligent Round Screen |
| Overall Dimension (L × W × H) | 60×30×52 cm | 60×30×52 cm | 60×30×52 cm |
| Machine Weight (with wire feeder) | Approx. 45 kg | Approx. 45 kg | Approx. 45 kg |
| Input Voltage | AC 220V / 50-60 Hz | AC 220V / 50-60 Hz | AC 220V / 50-60 Hz |
| Protection Class | IP54 | IP54 | IP54 |
| Stainless Steel Welding Penetration (Single-side) | 3 mm | 4 mm | 5 mm |
| Stainless Steel Welding Penetration (Double-side) | 6 mm | 8 mm | 10 mm |
| Additional Functions | Laser Cutting + Laser Cleaning | Laser Cutting + Laser Cleaning | Laser Cutting + Laser Cleaning |
